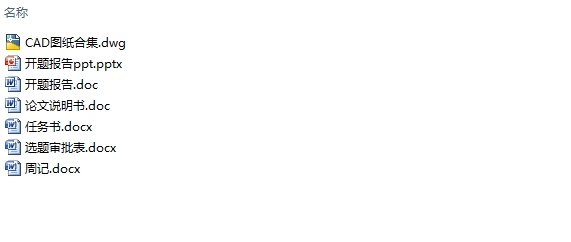

高层建筑外墙清洗机-升降机设计(含CAD零件图装配图)(选题审核表,任务书,开题报告,开题报告PPT,周记,论文说明书16000字,CAD图16张)
摘  要
社会稳步向前发展,人类也在逐渐提升自己,与此同时生活水平逐渐得到改善，,城市建设也更规范,整洁。现如今城市高楼大厦, 美观是高层建筑建设的目标, 建筑的外墙的装饰材料种类也日益增多,如瓦砖,特殊涂料,或玻璃等等。但是,天气的变化莫测,风霜雪雨,日光辐射以及雾霾污染, 沙尘天气都会使建筑物外墙遭受到不同程度的污染损害,变得破旧,甚至破损, 不再像刚开始那么干净整洁美观,建筑物外墙是城市形象表现形式之一,他就好比人身上的衣服, 要保持干净、整洁,如果受污染以及损坏,我们就需要对他进行清洗, 整理，以及日常维护和保养等。
高层建筑外墙清洗机的特点是投资小，成本低，工作安全可靠,其工作效率较高,对环境污染小,降低成本,节约资源。该机器由两部分组成,一部分是高层建筑顶部的升降系统，是通过升降绳与吊钩共同作用下所带动的清洗机构，第二部分便是清洗机，即附在高层建筑外墙的清洗工作的部分。清洗机对高层建筑外墙进行工作时，处在升降机内部的的双速电机开始启动，由钢丝绳架将其带动并且开始迅速的上升，等待达到预计的位置，双速电机随即停止工作开始进行制动，调整清洗机位置，随即停止制动，然后将双速电机反向开启，整个机架便开始缓慢的向下移动，与此同时，机架最顶端的喷淋水嘴开始喷水，每个导轨上的清洗刷具在各个电机的带动下沿着开始旋转并且沿着自己的轨道进行循环往复移动的运动，开始将外墙上的污渍清洗干净，使外墙整洁明净美观。 [资料来源：http://THINK58.com]
关键词:  高层建筑外墙  清洗机 升降机
Abstract:
   With the steady development of the society, human beings are gradually improving themselves. At the same time, the living standards are gradually improved. The urban construction is also more standardized and tidy. Nowadays, the beauty of high-rise buildings is the goal of high-rise building construction. However, the unpredictable weather, wind, frost, snow and rain, solar radiation and haze pollution, sand and dust weather will cause different degrees of pollution damage to the outer wall of the building, which will become dilapidated, even damaged, no longer as clean and beautiful as it was at the beginning. The outer wall of the building is one of the expression forms of the city image, just like the clothes on the human body, which should be kept clean and tidy, If it is polluted or damaged, we need to clean it, arrange it, and maintain it.
The characteristics of high-rise building exterior wall cleaning machine are small investment, low cost, safe and reliable work, high efficiency, small environmental pollution, low cost and resource saving. The machine is composed of two parts. One is the lifting system on the top of high-rise building, which is driven by the lifting rope and hook. The second part is the cleaning machine, which is attached to the external wall of high-rise building. When the cleaning machine is working on the outer wall of high-rise building, the two speed motor inside the elevator starts to start, driven by the steel wire rope frame and starts to rise rapidly. Wait until it reaches the expected position, the two speed motor stops working immediately and starts to brake. Adjust the position of the cleaning machine, then stop the brake, and then turn the two speed motor back on. The whole frame starts to slow down At the same time, the spray nozzle at the top of the rack starts to spray water, and the cleaning brush on each guide rail starts to rotate under the drive of each motor and moves in a circular motion along its own track, and starts to clean the stains on the exterior wall to make the exterior wall clean, clean and beautiful.

[资料来源：www.THINK58.com]

Key words:
 the external walls of high-rise building;   washing machine lifts;   washing machine.
主要参数 ：如图表2.2
双速电机额定功率    2.4KW    1.5KW
双速电机额定转速    1500r/min    750/min
减速器传动比    8
卷筒转速约    186 r/min    93 r/min
钢丝绳上升速度约    0.6m/s
钢丝绳下降速度约    0.3m/s
