小型立体车库设计(含CAD零件装配图,CATIA三维图)

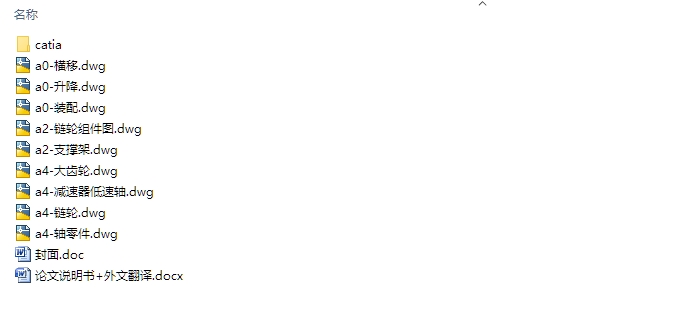

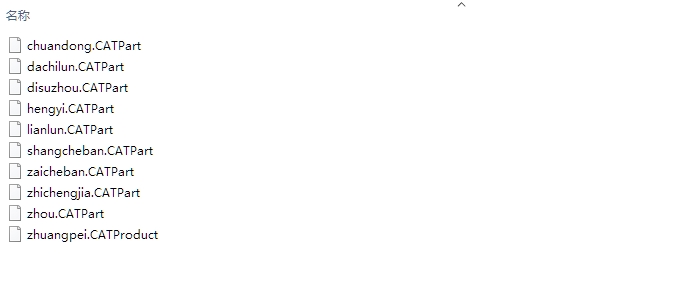

小型立体车库设计(含CAD零件装配图,CATIA三维图)(论文说明书14800字,外文翻译,CAD图纸9张,CATIA三维图)
摘要
国家经济近些年来正平稳迅速地发展，随着人民收入的稳定增长加之对交通快捷方便程度的需求，人民对汽车的需求量有增无减。车辆拥有量的增加应与停车场数目的增加节奏相当，但是目前看来，停车场的数目难以跟上车辆增加带来的停泊需求。因此，就带来了诸如车辆难以停放甚至在非车辆停放区乱泊车的问题，也为停车管理带来了许多难题。小型立体车库由于其结构的特殊性，使其具备了一位可停多车的优势，能够有效地解决商业用地有限，而居民停车困难的问题，得到了广大用户的支持。
本次设计将工作进程分为多部分进行设计，完成对本次设计的来源、目的及意义，并进行具体的设计计算及校核。设计部分主要包括对车库类型与移动方案的选择、链轮与链条的设计、传动部分的设计、各元器件的选择与计算和电器控制系统的设计。
以本文设计的各参数进行校核、模拟，可实现预期的效果，实现车辆的存取。由此可得出，升降横移式立体停车库能够以一定的场地面积对多数车辆进行存取，可以在一定程度上缓解停车难的问题，达到了本次设计的初衷。也可发现立体车库也是停车场地在未来的主流发展方向。 [资料来源：www.THINK58.com]
关键词:小型立体车库，传动结构，控制系统。
 
Abstract
The national economy has developed rapidly in recent years. With the steady growth of the people's income and the demand for rapid and convenient traffic, the demand for cars is increasing. The increase in vehicle ownership should be equivalent to the increase in the number of parking lots, but it seems that the number of parking lots is difficult to keep up with the parking demand. Therefore, it brings many problems such as vehicle parking and parking in non parking areas. It also brings many difficulties to parking management. Because of the particularity of its structure, small three-dimensional garage has the advantage of stopping multiple vehicles. It can effectively solve the limited commercial land, and the problem of resident parking difficulty has been supported by the vast number of users.Compared with the common underground garage,the small three-dimensional garage is more secure, and can greatly reduce the danger of people and vehicles. The equipment controlled by the electronic device stays in the garage, or the vehicle is in the non - parking space. [资料来源：www.THINK58.com]
This design divides the work process into several parts, designs the source, purpose and significance of the design, and carries out specific design calculation and verification. The design includes the selection of the type of garage and the mobile scheme, the design of the sprocket and chain, the design of the transmission part, the selection and calculation of the components, and the design of the electrical control system.
By checking and simulating the parameters designed in this paper, we can achieve the desired effect and achieve the access of vehicles. From this, it can be concluded that the lift and horizontal parking garage can access most vehicles with a certain area, and can alleviate the problem of parking difficulty to a certain extent and achieve the original intention of this design. It can also be found that stereo garage is also the main direction of parking development in the future.
Key Words：Small stereoscopic garage；Transmission mechanism；Control system


[资料来源：http://THINK58.com]

[来源：http://www.think58.com]

目   录
摘要    I
Abstract    II
1. 绪论    1
1.1课题的背景及意义    1
1.2立体车库的国内外发展现状    1
1.3多种小型立体车库的特点及比较    3
1.4论文的主要内容及章节安排    4

2.系统总体设计    5
2.1 系统总体结构设计    5
2.2 系统总体控制设计    7
3. 小型立体车库的传动系统设计    8
3.1 传动系统的组成    8
3.2 传动系统的主要参数    8
3.3传动链和链轮的选择    9
3.4链轮的计算    9
3.5 链条的设计计算    14
4.电器控制系统设计及元器件选型    19
4.1 电动机的选择    19
4.2减速器的选择    19
4.3轴承的选择    20
4.4轴的选择    20
4.5 安全装置的选择    23
4.6 PLC控制系统方案确定    24
总结    26
参考文献    27
附录Ⅰ ：外文译文    28
附录Ⅱ ：外文原文    37
附录Ⅲ：车库总程序    47
致 谢    52
