某水力发电厂电气部分初步设计(含CAD主接线图)

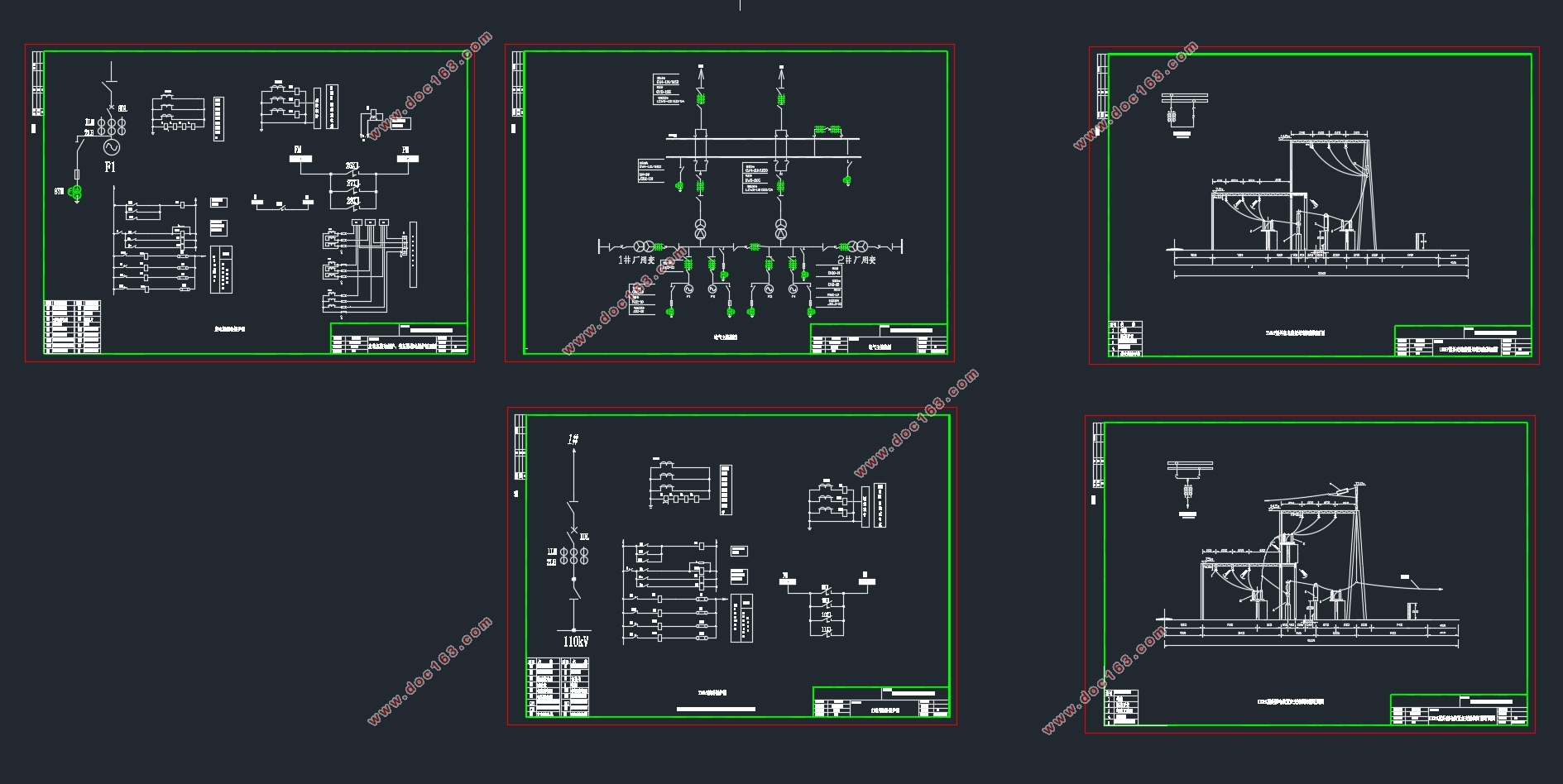

某水力发电厂电气部分初步设计(含CAD主接线图)(任务书,开题报告,论文说明书11000字,CAD图纸5张)
摘要
水电厂，就是水利发电厂，又叫做水电站。它的基本发电原理是：从河流较高处或水库内引水，利用水压或水流冲动水轮机旋转，将水能转变为机械能，然后由水轮机带动发电机旋转，将机械能转换为电能[1]。
水电厂有很多特点，能够充分利用水的自然能量；发电的成本来源于自然，成本低；运行灵活；水可以通过水库来储存和调节；利用水能的电力最为清洁；水电厂建设要依据地形，成本较高难度也较大，非常依赖周围环境，条件不足的地带无法修建；水电厂通常还有水库的功能，截流等功能会影响当地的生态环境。
本次设计为4×60MW水力发电厂电气部分初步设计，首先要进行电气主接线部分的设计；其次进行短路电流的计算，还有各种设备选择；配电装置和继电保护都要进行仔细的设计，并进行防雷规划。最后绘制主接线及配电装置图。
关键词：水力发电  主接线  继电保护  短路计算

Electrical part of a hydroelectric plant preliminary design
Abstract
A hydropower station is a power plant that converts the potential energy and kinetic energy of water into electricity.Its basic principle of generating electricity is to draw water from a river higher or in a reservoir, using water pressure or water to impulse the turbine to rotate.Conversion of water energy to mechanical energy，then the turbine drives the generator to rotate and converts the mechanical energy into electrical energy. [来源：http://www.think58.com]
Characteristics of Hydropower plants：Comprehensive utilization of hydropower resources；low cost and high efficiency；Flexible operation；Hydroelectric power generation is basically free of environmental pollution；The construction cost of hydropower plant is on the high side and the construction period is relatively long.The construction and production of hydropower plants are restricted by various conditions, so the power generation will not be balanced.The construction of reservoir may destroy the ecological balance of nature to some extent.
This design is a preliminary design for the electrical part of 4 × 60MW hydroelectric power plant, in which the design of the main electrical connection part, the calculation of the short-circuit current, and the selection of the equipment of various electrical components are carried out. Distribution equipment and relay protection should be carefully designed, and part of the lightning protection planning. And the main wiring part and distribution equipment detailed drawings made out.

[来源：http://think58.com]

Key words: main relay protection safety and stability short circuit calculation and distribution design

3原始资料
1、本水电厂装机容量为4×60MW，利用小时数为4000H/年，机端电压为10.5KV
2、本发电厂接入系统电压等级为110KV，距电力系统10KM，电抗为0.4欧姆/km
3、厂用电负荷为0.5%，无发电机电压负荷
1、电气主接线设计

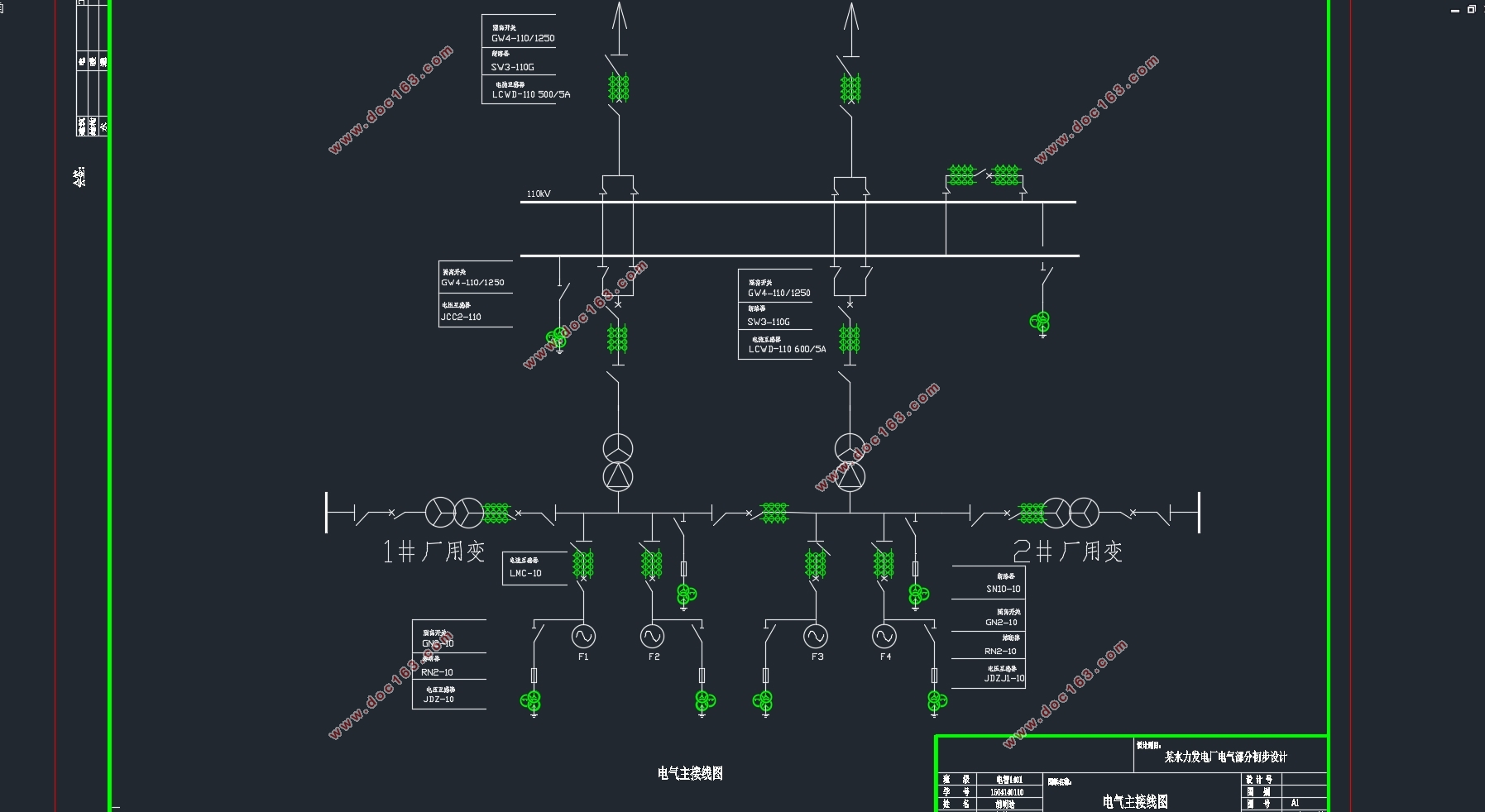

电气主接线是本次水电厂电气部分设计的第一步，也是实际生产建设过程中最核心的部位，最关键的一步。主接线设计是通过规定的规范符号和连线来绘制出的，直接表现水电厂主接线的实际施工应该布置的内容。
水电厂的电气主接线的一次设计是整个水电厂电气系统的核心部分，未来水电厂运行的稳定性可靠性很大程度取决于主接线的设计，还有后续的各种元件的选择也需要根据主接线来确定，配电装置和继电保护等重要的设计也和主接线的设计离不开，是打好电气设计这个大厦的基石。


[资料来源：http://www.THINK58.com]
