五层3841平米钢结构大学学生公寓住宅设计(含建筑图结构图)

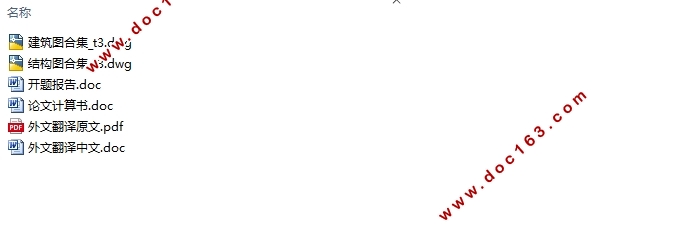

五层3841平米钢结构大学学生公寓住宅设计(含建筑图结构图)(开题报告,外文翻译,论文计算书20000字,CAD建筑图9张,CAD结构图13张)
摘 要
本工程为某大学学生公寓住宅，以创造大众性、示范性、科学性和可持续发展的新型住宅为指导思想，力争在建筑形式、建筑技术和材料、设备的使用上有所创新，达到先进、合理及新颖、耐用，增加新技术含量，以满足学生现代居住生活的发展要求。
本工程采用钢框架结构，采用H型钢柱，H型钢梁构成框架体系，由于楼层较低，不设支撑。梁柱节点为栓焊组合节点，其中梁翼缘为对接焊缝连接，腹板为摩擦型高强螺栓连接。楼板为压型钢板非组合楼板，楼板用栓钉跟钢梁焊接构成整体，墙采用NALC板，基础为钢筋混凝土柱下独立基础。
关键词：钢结构 框架 梁柱节点

Multilayered steel structure housing design
Abstract
This project is some university student apartment housing, Take creates the populace, demonstrative, scientific and the sustainable development new housing as the guiding ideology, argues vigorously in the construction form, the building technology and the material, in the equipment use has the innovation, achieved advanced, reasonable and novel, is durable, increases the new technical content, satisfies the students modern housing life the development request. [资料来源：www.THINK58.com]
This project uses the steel portal frame construction, uses the H steel girder, the H steel pole constitution frame system, does not suppose the strut therefore the choice component section size is bigger. The beam and column the pitch point welds the combination pitch point for the hitch, the beam edge, excels in the bold fastening for the friction, the web plate for the butt welding seam connection. the floor with steel nail with the steel girder welding constitution whole, the wall uses adds the steam concrete masonry unit, the foundation for the reinforced concrete column under strip footing.
Key words: Steel structure, frame, the pitch point of beam and columns



 目 录 [资料来源：THINK58.com]
第一章：设计概况  -----------------------------------------------------------3
1.1 工程概况 -----------------------------------------------------------------3
1.2 设计过程 -----------------------------------------------------------------4
第二章：结构设计方案 ------------------------------------------------------6
2.1 设计资料 -----------------------------------------------------------------6
2.2 结构的选型与布置 ---------------------------------------------------------6
2.3 框架计算简图及梁柱线刚度 -------------------------------------------------9
第三章：结构分析与设计 --------------------------------------------------11
3.1 荷载计算 ----------------------------------------------------------------11
3.2 风荷载作用下的位移验算 --------------------------------------------------18
3.3 水平地震作用计算 --------------------------------------------------------21
3.4 内力计算 ----------------------------------------------------------------26 [资料来源：http://think58.com]
3.5 内力组合 ----------------------------------------------------------------51
3.6 杆件截面验算 ------------------------------------------------------------61
3.7 节点设计 ----------------------------------------------------------------91
3.8 压型钢板非组合楼板设计 -------------------------------------------------122
3.9 楼梯设计 ---------------------------------------------------------------124
4.0 基础设计 ---------------------------------------------------------------129
第四章：电算结果与手算结果对比 --------------------------------------135
结语 -------------------------------------------------------------------------150
参考文献 --------------------------------------------------------------------151
致谢 -------------------------------------------------------------------------152 [资料来源：THINK58.com]
