PC主机侧板冲压拉伸模具设计(含CAD图,UG三维图)

以下是资料介绍,如需要完整的请充值下载.
1.无需注册登录,支付后按照提示操作即可获取该资料.
2.资料以网页介绍的为准,下载后不会有水印.资料仅供学习参考之用.

资料介绍:

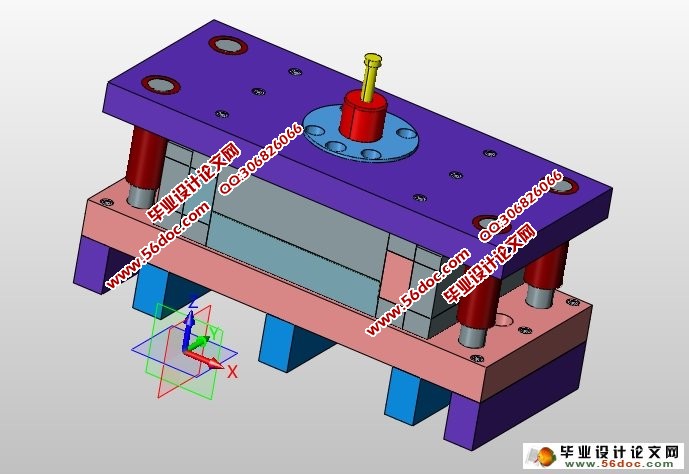

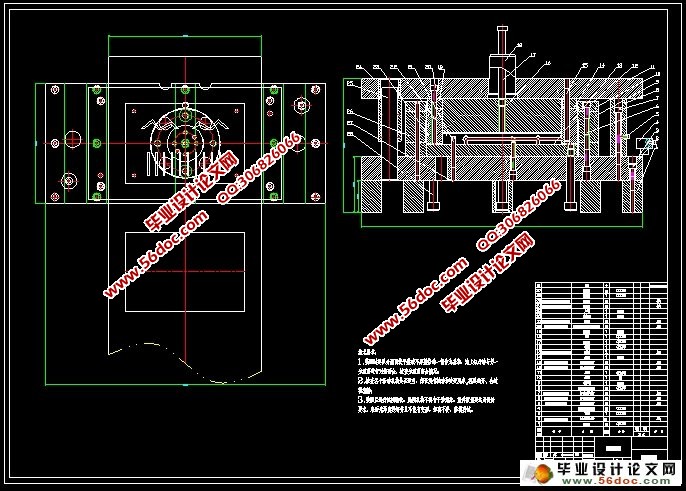

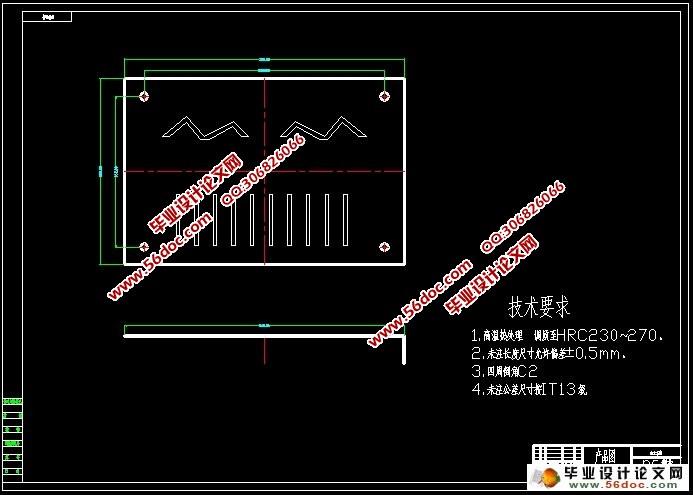

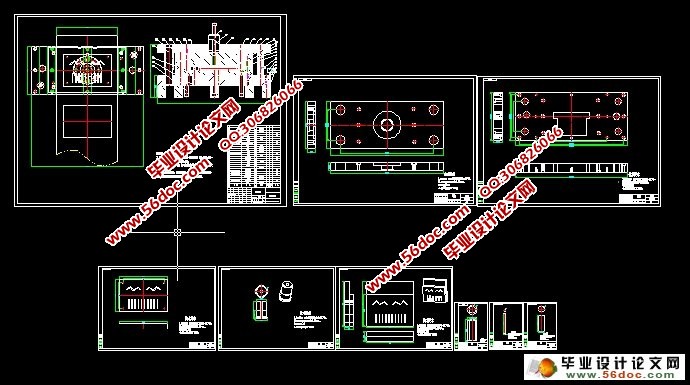

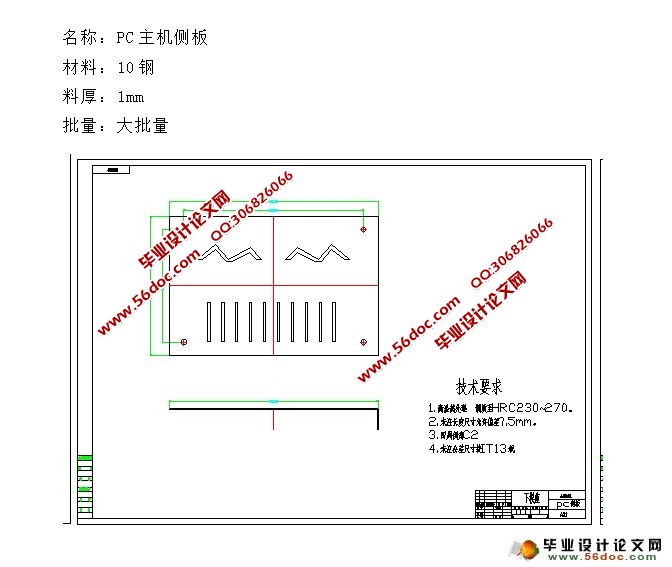

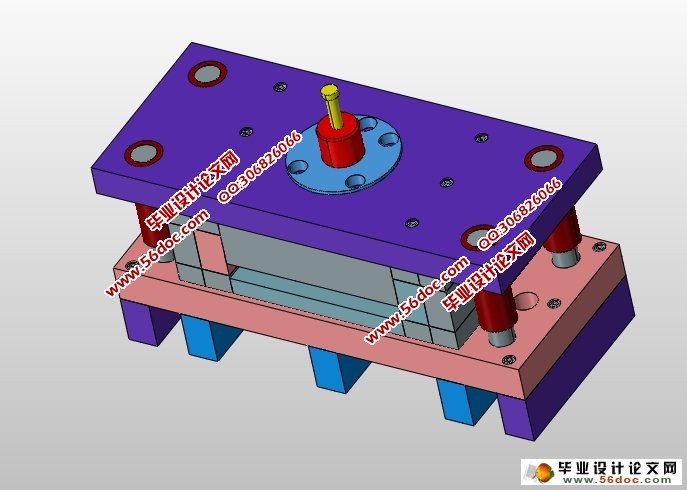

PC主机侧板冲压拉伸模具设计(含CAD图,UG三维图)(任务书,设计说明书12400字,CAD图纸9张,UG三维图)
摘  要
首先对冲压件进行分析,分析该零件的尺寸精度得出用一般精度的模具即可满足零件精度的要求,再根据零件的形状、尺寸标注及生产批量等情况,选择拉伸冲压拉伸的方案。在本次设计冲压拉伸拉伸复合模中,仅要考虑使做出的零件能满足使用要求,还要保证模具的使用寿命。该冲裁模具还详细地叙述了模具成型零件包括上模架、凹模、凸模、凸模固定板、凸凹模固定板、上模架、下模架、卸料板、模柄等的设计,重要零件的工艺参数的选择与计算,推出机构以及其它结构的设计过程,其中里面也包括了:工艺分析,工艺方案的确定,计算毛坯尺寸,画排样图,计算冲压力,压力机的选择,计算压力中心,凸凹模拉伸尺寸的计算,校核冲裁模工作部分,工艺计算冲裁件的毛坯尺寸计算,凸模与凹模的圆角半径,冲裁模中的凸凹模间隙凸、凹模工作尺寸,冲压设备的选择,模具的总体结构,主要零部件的设计及选择,模具制造装配要点等。

关键词:复合模;模具设计;冲压拉伸;拉伸;排样
Abstract
 First wash to press a size accuracy for proceeds analysis, analyzing that spare parts to get to use the general accuracy to then satisfy the request of the spare parts accuracy, again from the spare parts's shape, size the mark note and produced the batch quantity etc. The circumstance to see, choose to hurtle the bore the project. Hurtle the compound mold inside of of bore in this design, not only want the consideration to make do to can satisfy the usage request, and still want the service life of the assurance molding tool. Should wash to cut the molding tool to return to in detail described the molding tool the type spare parts include the choice for craft for design for, cave template, convex template, convex mold fixing the plank, convex and cave mold fixing plank, ascending mold, next mold, unloading the plank, mold the handle waiting, important spare parts counting and calculation of last mold, and release the organization and design of construction other the process, and among them and inside also included: The craft analyzes, and the craft project really settle, calculation semi- finished product the size, painting row kind the diagram, calculation to wash the pressure, pressure machine of choice, calculation pressure center, design for total construction for choice for convex and cave mold cleft for circle Cape for calculation for semi- finished product size for calculation for size, craft the calculation washing cutting first piece calculation, wash the pressuring, convex mold and cave mold radius, washing cutting the mold the inside convexly, work size of cave mold, washing pressing the equipments, molding tool, main zero parts and choice of convex and cave mold blade,the molding tool manufacturing assemble the important point etc. [版权所有:http://think58.com]

Key Words:Compound mold;Mold design;Punching;Blanking;Nesting
