料斗移动小车(电动平板车)设计(PLC控制,含CAD图)

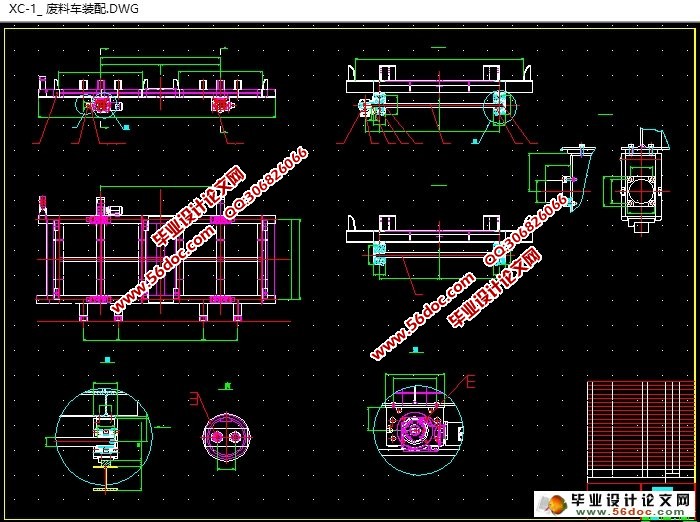

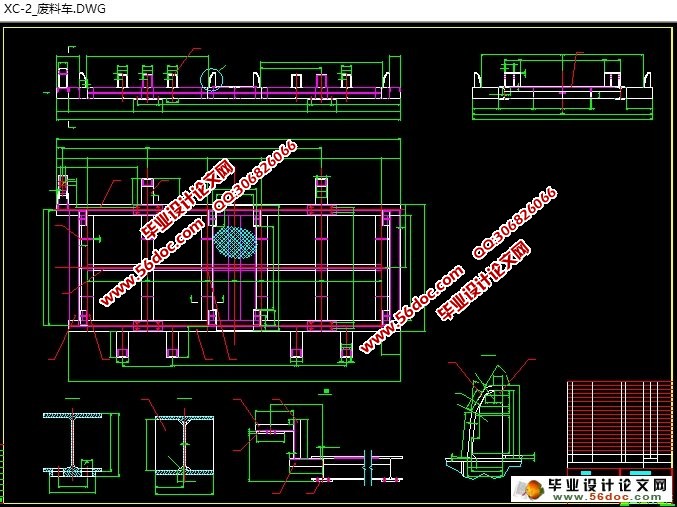

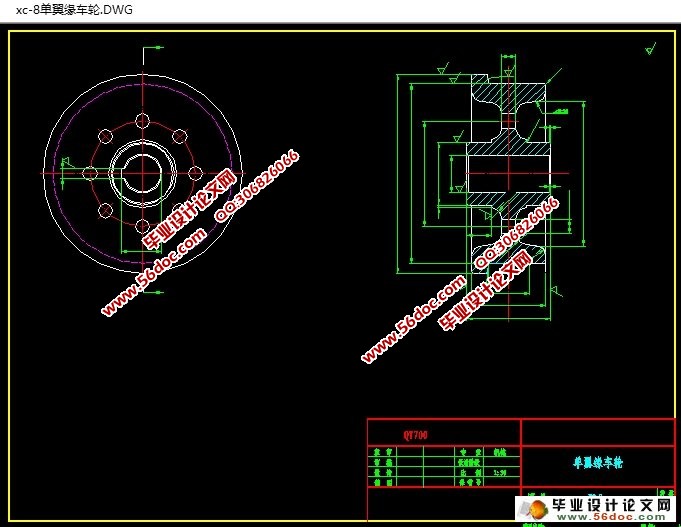

料斗移动小车(电动平板车)设计(PLC控制,含CAD图)(任务书,开题报告,外文翻译,论文说明书7500字,CAD图纸6张)
摘 要
   随着时代不断的发展钢铁行业向着高速、重载、运载能力的跨越式发展。好多生产车间的工作量以及效率在不断加大和提高，这样对车间的物流速度要求也有了进一步提升。先前靠单一的天车来搬动工件已经完全不能满足现代高效率的生产要求，同时这种大马拉小车的搬运方式也成为了一种典型的浪费。因此车间内需要这种具有结构简易、承载能力大、使用方便、、容易保养、使用寿命长得料斗小车来保证搬运的畅通，我所设计的料斗移动小车就完全适应社会的需求。
    我设计的料斗移动小车又叫过跨电动平车，在经过大量阅读料斗小车书本的基础上，我从小车生产需求方面出发，设计了50T的电动平板车样机。                             关键词：平板车 强度 轨道车轮

Hopper electric flat car design
Abstract
  With the development of the era constantly steel industry towards high speed, overload, leapfrog development capacity. A lot of work and efficiency of production workshop in growing and improving, so logistics speed requirements of workshop has a further increase. Prior to move the workpiece by a single crown has been completely can not meet the requirement of the modern high efficient production, at the same time the large mara car handling way has also become a kind of typical waste. So the workshop need this has simple structure, convenient use, large carrying capacity, easy maintenance, long service life of the hopper electric flat car to ensure smooth handling of so I designed hopper electric car was completely adapt to the demand of the society.

I've designed hopper car is primarily a cross electric flat car, after extensive reading on the basis of related literature, I based on actual production demand, the 50 t electric flat car prototype design.
I have mainly introduced the cross in the design of electric flat car overall design theory and design process, including a across the overall design of electric flat car running mechanism and transmission mechanism, across to the layout of the electric flat car body, car running mechanism calculation. Calculation in the design of shaft and bearing selection, the selection and design of the bearing, gear motor selection, the design of the shaft.
Keywords：Flat  carb strength  Rail wheels

设计参数：
（1）运输重量：50t
（2）轨距： 1436mm
（3）满载行走速度：30m/min,空载行走速度50m/min,行走距离：40m
（4）台面尺寸：5000mmX2000mm


[资料来源：THINK58.com]

目 录
摘 要    III
Abstract    IV
1绪 论    1
2料斗移动小车设计综述    2
2.1料斗移动小车概况    2
2.2料斗移动小车的类型    2
3料斗移动小车的控制系统    3

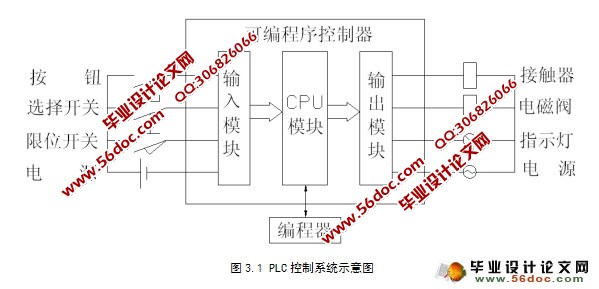

3.1PLC控制系统示意图    3
3.2开关量I/O模块    3
3.3元器件的选用    3
3.4料斗移动小车的工作流程    4
4料斗移动小车电气控制系统设计    6
4.1 I/O端口分配：    6
4.2资源详细分配：    6
4.3变频器的端子接线：    7

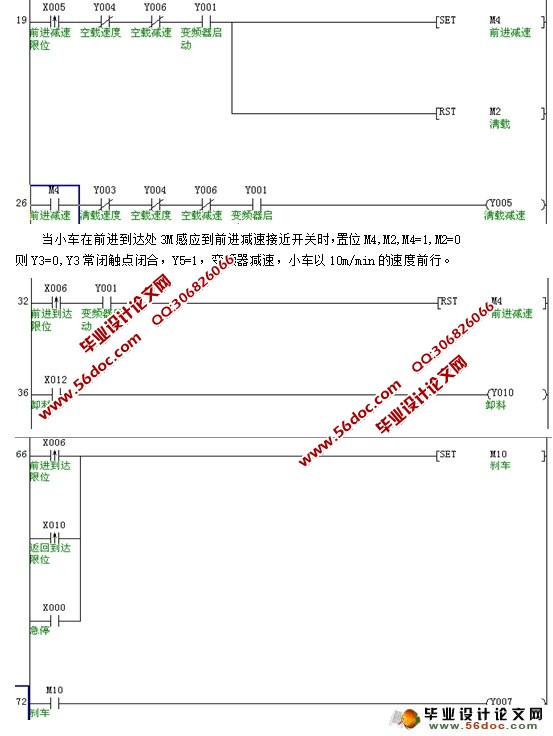

4.4 PLC控制程序设计    7
5料斗移动小车车轮类型的选用    11 [版权所有：http://think58.com]
5.1车轮的材料选用    11
5.2车轮的结构选用    11
5.3车轮的直径选则    11
6料斗移动小车传动系统结构的设计与计算    13
6.1设计参数：    13
6.2电动机的类型选用：    13
6.3电动机的功率选用    13
6.4电动机转速的选用    14
6.5电动机型号的选用    14
6.6 计算总传动比和分配各级传动比    14
6.7 计算传动装置的运动和动力参数     15
6.8减速器的计算与选用    15
7行走机构的设计    17
7.1主动轮轴的设计    17
7.2 从动轮轴的设计     19
8车架的设计    21
8.1材料选用    21
8.2结构选用    21
9三维建模    22
10.结论    24
参考文献    25
致 谢    27 [资料来源：THINK58.com]
