全长90m一联三跨30m+30m+30m预应力混凝土等跨连续梁桥设计(含CAD图)

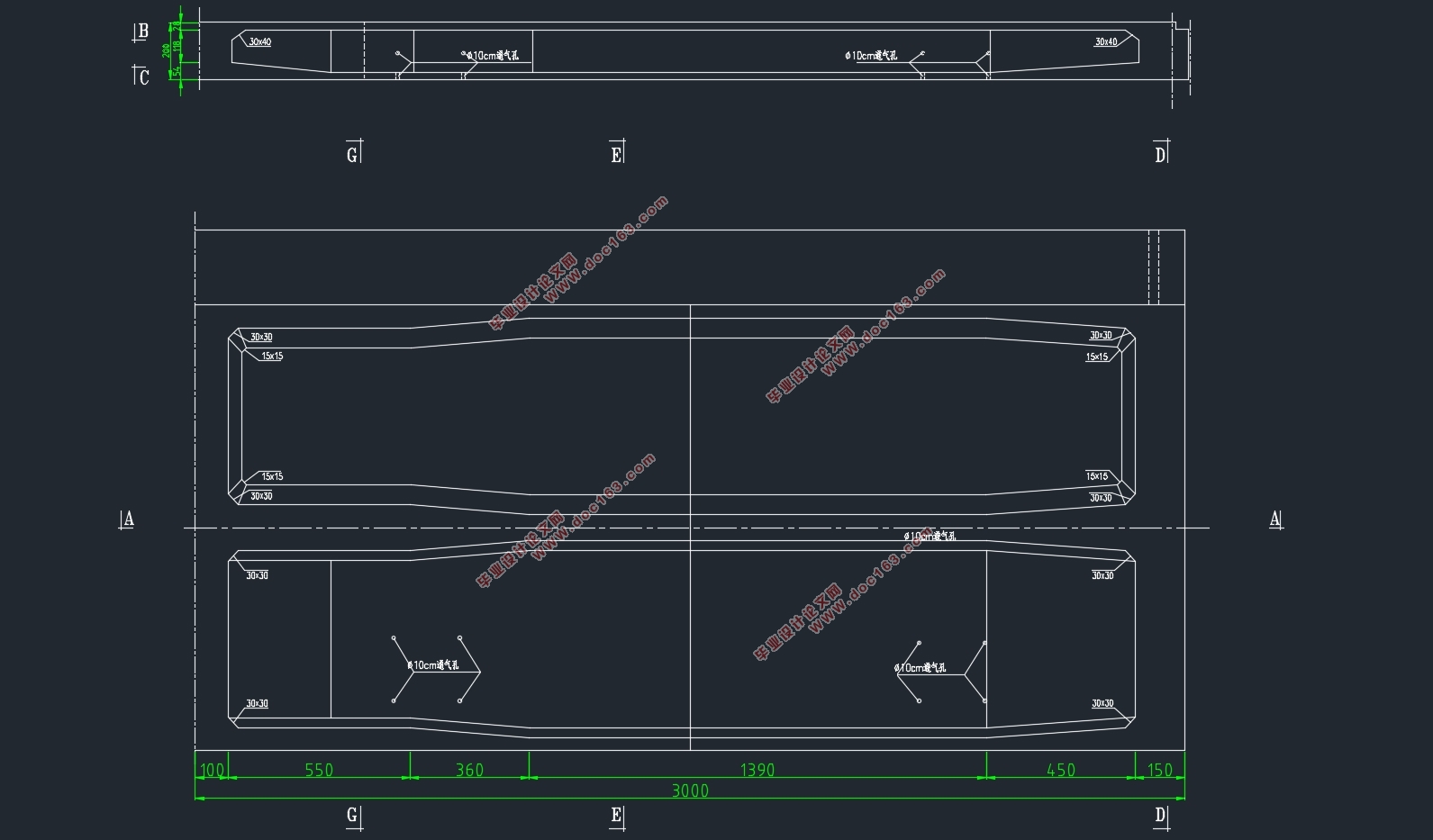

全长90m一联三跨30m+30m+30m预应力混凝土等跨连续梁桥设计(含CAD图)(任务书,开题报告,论文说明书18000字,CAD图15张)
摘   要
本设计是根据设计任务书的要求和《公路桥规》的规定,对江阴新沟河大桥北引桥进行方案比选和设计的。连续梁桥是工程上广泛使用的一种桥型,它不但具有可靠的强度,刚度及抗裂性,而且具有行车舒适平稳,养护工作量小,设计及施工经验成熟的特点。设计一座梁桥必须从桥跨布设,尺寸拟定,钢束布置以及施工方法等方面综合考虑,还要充分考虑设计参数和环境影响。本设计是一联三跨连续梁桥，截面形式为单箱双室，纵向变截面；施工方式是悬臂（挂篮）施工整体现浇。该设计首先进行恒载、活载及次内力的计算,在此基础上进行荷载组合,绘制弯矩和剪力包络图；其次,根据频遇效应组合配置预应力钢筋，并进行预应力损失的计算；最后，对该连续梁桥进行验算，是否满足设计要求。下部结构采用钻孔灌注桩，支座采用盆式橡胶支座，并分别对桥墩和桩基础进行了计算和验算。
本设计全部设计图纸采用计算机辅助设计绘制，计算机编档、排版，打印出图及论文。并且翻译了一篇英文短文“Behaviour of one-way concrete slabs reinforced with CFRP grid reinforcements.” [来源：http://think58.com]
关键词：设计  连续梁桥  悬臂施工（挂篮）  预应力
Design of Prestressed Concrete Equal Span Continuous Girder  Bridge of North Approach Bridge of Xingou River Bridge in Jiangyin ( 3×30 m)
【Abstract】This design is based on the requirements of the design mission book and the provisions of the “Road Bridge Regulations” to compare the design and design of the north approach bridge of the Jiangyin Xingou River Bridge. The continuous girder bridge is a kind of bridge widely used in engineering. It not only has reliable strength, rigidity and crack resistance, but also has the characteristics of comfortable and stable running, small maintenance workload, mature design and construction experience. The design of a girder bridge must be comprehensively considered from the aspects of bridge layout, size planning, steel beam layout and construction methods, etc. It is also necessary to fully consider design parameters and environmental impact. The design is a three-span continuous girder bridge with a single-chamber double-chambered cross-section and a longitudinally-varying cross-section. The construction method is an integral cast-in-place construction of a cantilever (hanging basket) construction. The design firstly carries out the calculation of dead load, live load and sub-internal force. Based on this, the load combination is performed and the bending moment and shear envelope diagrams are drawn. Secondly, the prestressed steel bar is configured according to the short-term effect, and the prestressing steel is lost. Calculation; Finally, check the continuous beam bridge to meet the design requirements. The substructure uses cast-in-place bored piles, and the stand uses potted rubber bearings. It calculates and verifies the piers and pile foundations separately.

All design drawings of this design are drawn using computer-aided design, computerized documentation, typesetting, and printed drawings and papers. And he translated an English essay "Behaviour of one-way concrete slabs reinforced with CFRP grid reinforcements."
【Key Words】 design; continuous bridge; the cantilever (hanging basket); prestress
标准跨径
江阴新沟河大桥北引桥总长90 m。按照设计任务书中的要求，本联设计要求采用等跨等截面连续箱梁结构形式，布置时，确定本联的跨径布置如下：
30m+30m+30m =90m


[资料来源：www.THINK58.com]
