六层电梯控制系统的设计(附梯形图,接线图和控制流程图)

以下是资料介绍,如需要完整的请充值下载.
1.无需注册登录,支付后按照提示操作即可获取该资料.
2.资料以网页介绍的为准,下载后不会有水印.资料仅供学习参考之用.

资料介绍:

摘  要:国民经济的飞速发展, 现代化程度日益提高,高层建筑愈来愈多, 电梯也随之增多, 电梯产品在人们物质文化生活中的地位得到了提高,成为重要的运输设备之。国内传统的电梯控制一是由继电器、接触器构成。它不仅存在着可靠性差、成本高、故障率高等缺点,而且在层数增加时,配线变化给制造及安装带来诸多不便。若用 控制就解决了以上的不足。本设计就以作为工具对升降电梯的各种操作进行控制。先对六层电梯的硬件部分作分析,看需要什么样的开关,电机,信号灯等。然后,画出它的控制面板图,再根据控制面板图估计一下I/O点数,这样可以确定所选机型,然后在软件设计,写出流程图,梯形图,写出语句。
关键词:PLC;电梯;继电器;接触器

DESIGN of THE CONTROL SYSTEM of ELEVAROR BASED on PLC
Abstract: The rapid development of the national economy, the increasing degree of modernization, more and more high-rise buildings, elevators also will be increased, Elevator products in people's material and cultural life of the status has been enhanced to become one of the important transport equipment. Traditional domestic elevator control from the first relay, a contactor. It is not only poor in the reliability, high cost, high failure rate shortcomings, but also in layers increases, changes to the wiring and installation of manufacturing has brought many unchanged. If the control by PLC to address the above shortcomings. the design of the PLC as a tool to the elevators for various operating control. Elevator on the first six parts of the hardware analysis, the need to see what kind of switches, motors, lights, etc.. Then, the control panel draw maps, plans, under the control panel is estimated to I / O points, so certain selected models, and then softwaredesign, write flowchart, ladder diagram, write statements. [版权所有:http://think58.com]
Key words: PLC control system;Elevator;relay;ontactor

本系统主要以PLC为核心,利用PLC的强大的控制功能,实现了对升降电梯的控制。
利用梯形图程序可以很直观的看出运行过程。利用可编程控制器控制升降电梯,具有接线简单、编程直观、扩展容易等特点。当建筑物的层楼增加时,硬件接线上只需增加楼层相应的输入信号,原来的接线不需改变。软件上只需增加相应楼层的功能,要改动的地方也较少。

本设计就以PLC作为工具对升降电梯的各种操作进行控制。对六层电梯的硬件部分作分析,看需要什么样的开关,电机,信号灯等。然后,画出它的控制面板图,再根据控制面板图估计一下I/O点数,这样可以确定所选机型,然后在软件设计,写出流程图,梯形图,写出语句。

[资料来源:http://THINK58.com]

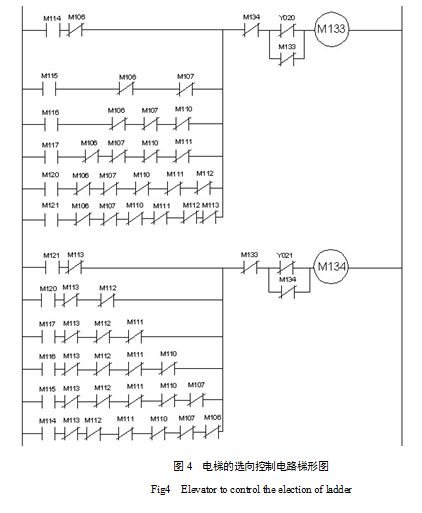

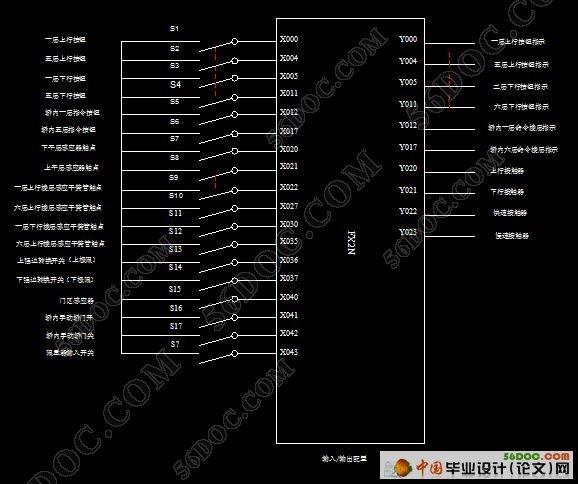

基于PLC电梯控制系统的设计(附梯形图,接线图和控制流程图)
基于PLC电梯控制系统的设计(附梯形图,接线图和控制流程图)
基于PLC电梯控制系统的设计(附梯形图,接线图和控制流程图)


目    录  10000字    附梯形图,接线图和控制流程图
摘要…………………………………………………………………………………………1 [资料来源:http://think58.com]
关键词………………………………………………………………………………………1
1前言…………………………………………………………………………………………2
2整体设计流程的确定………………………………………………………………………4
3可编程控制器的机型选择…………………………………………………………………4 [版权所有:http://think58.com]
    3.1可编程控制器控制系统的I/O点数估算…………………………………………5
3.2内存的估计 ………………………………………………………………………5
3.3响应时间的分析……………………………………………………………………5
3.4PLC的选型…………………………………………………………………………5
3.5机型的确定…………………………………………………………………………6

[资料来源:http://THINK58.com]


4硬件设计……………………………………………………………………………………6
4.1 硬件配置简介……………………………………………………………………6
4.2输入/输出的分配…………………………………………………………………9
5控制程序设计……………………………………………………………………………10
5.1电梯的启动平层电路的控制……………………………………………………10 [资料来源:http://www.THINK58.com]
5.2电梯的换速平层电路的控制……………………………………………………12
5.3电梯的选向电路的控制…………………………………………………………13
5.4楼层感应电路的控制……………………………………………………………14
5.5轿内指令及厅门召唤电路的控制………………………………………………17
5.6电梯开关门电路的控制…………………………………………………………18
6总结………………………………………………………………………………………20

[来源:http://think58.com]


参考文献……………………………………………………………………………………20
致谢…………………………………………………………………………………………21
附录…………………………………………………………………………………………22 [资料来源:http://THINK58.com]
