经济型中档精度数控车床横向进给系统设计

以下是资料介绍,如需要完整的请充值下载.
1.无需注册登录,支付后按照提示操作即可获取该资料.
2.资料以网页介绍的为准,下载后不会有水印.资料仅供学习参考之用.

资料介绍:

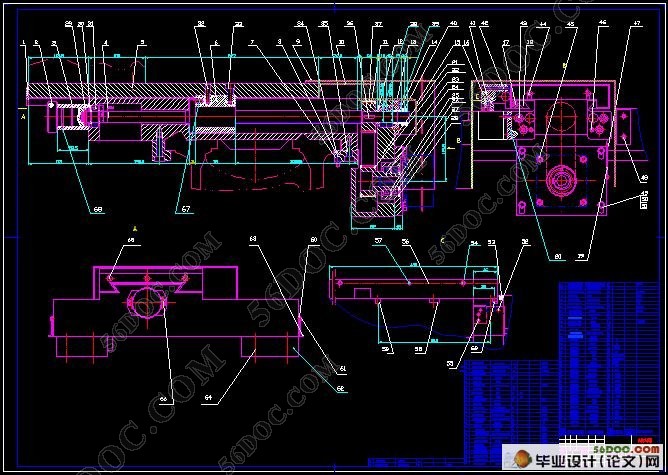

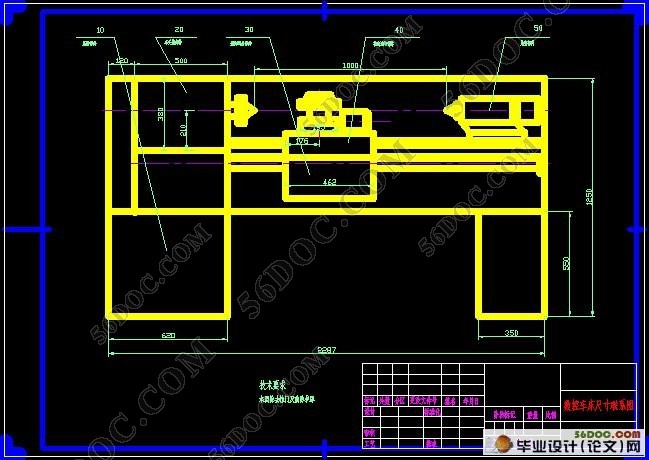

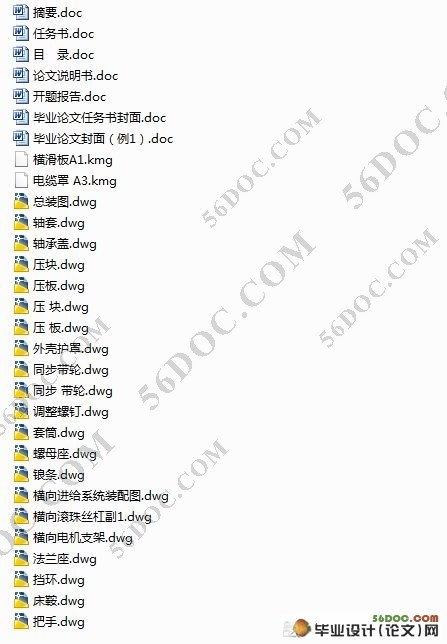

经济型中档精度数控车床横向进给系统设计(任务书,开题报告,论文说明书9000字,cad图纸)
摘要
此设计是经济型中档精度数控车床横向进给系统 。面对我国目前机床数量少、工业生产规模小的特点,突出的任务是用较少的资金迅速改变机械工业落后的面貌。而数控车床(及其系统)已经成为现代机器制造业中不可缺少的组成部分。所以,实现这一任务的有效的、基本的途径就是普及应用经济型数控机床。

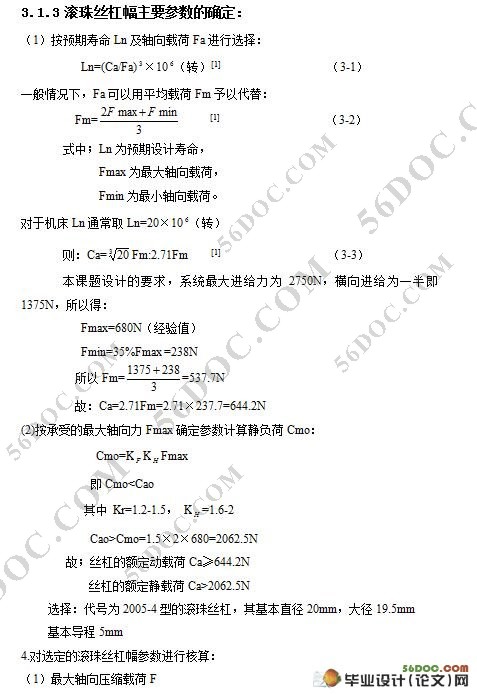

进给系统是由伺服电机经滚珠丝杠拖动工作台来完成的所以设计涉及伺服电机的选择,滚珠丝杠设计等。目前绝大部分的机床的横向进给均是采用滚珠丝杠来传递运动的,传动的精确性主要取决于丝杠支承形式,丝杠与伺服电机的联接方式。在设计中充分考虑到这两个问题,并且,设计精度须达原始数据。

关键词:滚珠丝杠  伺服电机  横向进给

Abstract
This design is the feeding operation of numerical control lathe with economic type of intermediate precision
In view to the quantity of machine tools in our country is not enough and the scale of industrial production is little at present, the outstanding task is to change our mechanical industrial appearance with less fund in short order. [资料来源:THINK58.com]
And the numerical control lathe and its system have become an important part in modern manufacturing industry.
So, to realize this task, the effective and the basic channel is to use this economic type of numerical control lathe widely.
Feeding system goes normally with the ball screw which is droved by servo-motor dragging the workbench up and down.
So, this design includes the option of servo motor, the design of ball screw and so on.Now, the landscape orientation feeding of most machine tools is offered by ball screw. The accuracy of the transmission depends on mainly the form of the screw supports and the way of how screw and servo-motor to be joined. Besides the precision of the design needs Bases the primal data.
     Consider these two questions in the design  sufficient.
Keyword:  holler-type thread  Servo motor   landscape orientation

本设计课题为:经济型数控车床横向进给系统设计 。因为我们没有精良的加工工具或者是自动化系数等各方面远远的不及西欧等国家。所以我国的机械制造业与他们的有着很大的差距的原因,。制造业是关系到国际民生的大事,是富民强国的必要因素,我国要有更好的发展,必须形成我们自己富有特色的现代化制造体系。 [来源:http://think58.com]
随着时代的发展,科技的日新月异,数控技术的应用范围日益扩大,数控机床及其系统己成为现代化机器制造业中不可缺少的组成部分。面对我国目前机床拥有量少、工业生产规模小的特点,突出的任务是用较少的资金迅速改变机械工业落后的生产面貌,使之尽可能地提高自动化程度,保证加工质量,减轻劳动强度,提高经济效益。
“横向进给系统”“主传动系统”和“纵向进给系统”被称为车床的三大核心系统,其重要地位是不言而喻了。三大系统的精确性、准确性、必将影响加工产品的性能。而实现这一任务的有效的、基本的途径就是普及应用经济型数控机床,并对原有的机床进行数控改造。而这就是我们课题的目的。
 前提条件:1.床身上最大回转直径Ø400mm
2.快移速度x轴4m/min
3.定位精度 x 轴0.035mm
4.重复定位精度x轴0.0075mm,刀架 0.010mm
设计要求:设计课题要求:横向进给运动设计时,电机与丝杠采用柔性结构,电机选用伺服电机,对电机的大小选择进行验证,及对滚珠丝杠直径和支承形式选择进行强度较核,设计精度达原始数据。

[资料来源:THINK58.com]
