方程式赛车AMT变速器设计与控制策略分析(英文版)(含CAD图,CATIA三维图)

以下是资料介绍,如需要完整的请充值下载.
1.无需注册登录,支付后按照提示操作即可获取该资料.
2.资料以网页介绍的为准,下载后不会有水印.资料仅供学习参考之用.

资料介绍:

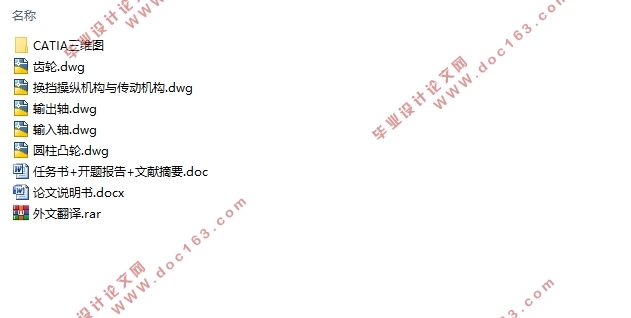

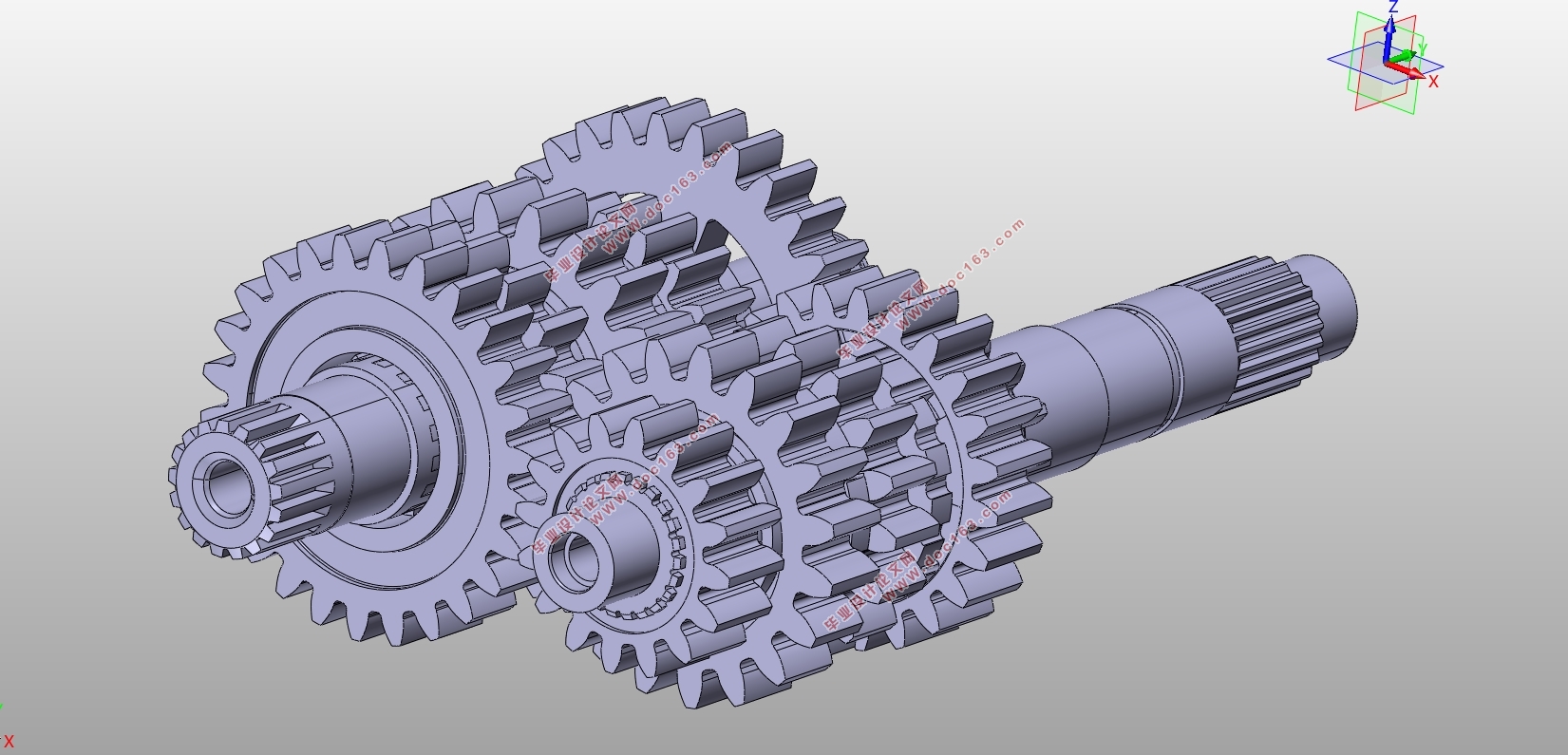

方程式赛车AMT变速器设计与控制策略分析(英文版)(含CAD图,CATIA三维图)(任务书,开题报告,外文翻译,文献摘要,论文说明书英文版18000字,CAD图5张,CATIA三维图)
Abstract
Transmission, which plays a decisive role in the performance of a racing car, forms an important part of an automobile. Due to the limitation of the traditional manual rocker in a small space in the formula car and its long shifting time, the gearbox is refitted to a pneumatic poke tablet and finally achieves the resemblance of the shifting mechanism in a F1 racing car.
According to regulation of FSC , we have refitted the original gearbox, designed the pneumatic shifting system and matched the corresponding shifting strategy. The original gearbox is a two-axe ordered formation with straight sliding gear and five speed, but without a synchronizer. First, the cylindrical cams are redesigned and the gear arrangement is changed to better adapt to FSC. Second, the pneumatic operation system is matched for the newly designed gearbox, design selections are conducted in gas source, decompression, direction change and conduction respectively to allow the driver to shift without hand leaving the steering wheel. Finally, after the design of basics, a complete shift control strategy is designed for the whole system of the car to increase the shift rate with high reliability and efficiency, to reduce the operating intensity for the driver, to decrease the interruption time of power and to enhance the average speed and stability.

[来源:http://think58.com]



Keywords: Shift Control Strategy, Pneumatic Operation System, Racing Car, Gearbox

[来源:http://www.think58.com]

方程式赛车AMT变速器设计与控制策略分析(英文版)(含CAD图,CATIA三维图)
方程式赛车AMT变速器设计与控制策略分析(英文版)(含CAD图,CATIA三维图)
方程式赛车AMT变速器设计与控制策略分析(英文版)(含CAD图,CATIA三维图)
方程式赛车AMT变速器设计与控制策略分析(英文版)(含CAD图,CATIA三维图) [资料来源:THINK58.com]
方程式赛车AMT变速器设计与控制策略分析(英文版)(含CAD图,CATIA三维图)
方程式赛车AMT变速器设计与控制策略分析(英文版)(含CAD图,CATIA三维图)


Contents
Abstract    3
Chapter 1 Introduction    1
1.1 Research Backgrounds    1
1.2 Introduction of Suspension System    2
1.3 Domestic and Foreign Research Status    3
1.4    Main Contents and Technical Scheme    4
1.4.1 Main Contents    4
1.5    Chapter Summary    4
Chapter 2 Design and Modification of a racing transmission    5

[资料来源:http://www.THINK58.com]

2.1Design the Racing transmission    5
2.1.1 Determine the gear ratio of each gear    5
2.2 Modification requirements and purpose    10
2.3 Transmission modification structure design    11
2.5 Chapter Summary    16
Chapter 3Pneumatic Execution System Design    17
3.1 Pneumatic system design purpose requirements    17
3.2 Pneumatic system design    18
3.2.1 Air source    18
3.2.2 Pressure reducing valve    20
3.2.3 Solenoid valve    21
3.2.4cylinder actuator    24
3.3 Arrangement and Commissioning    27
3.5 Chapter Summary    28
Chapter 4Shift Control Strategy Development    29
4.1shift process design    29
4.1.1 Upshift control process    31
4.1.2 Downshift control process    32 [资料来源:THINK58.com]
4.2 Anti-missing and anti-interference design    33
4.3 Chapter Summary    34
Chapter 5 Summarization and Outlooks    35
5.1 Design Summarization    35
5.2 Shortage and Outlooks    35
References    37
