微型纯电动车总体设计(含CAD图,CATIA三维图)(英文版)

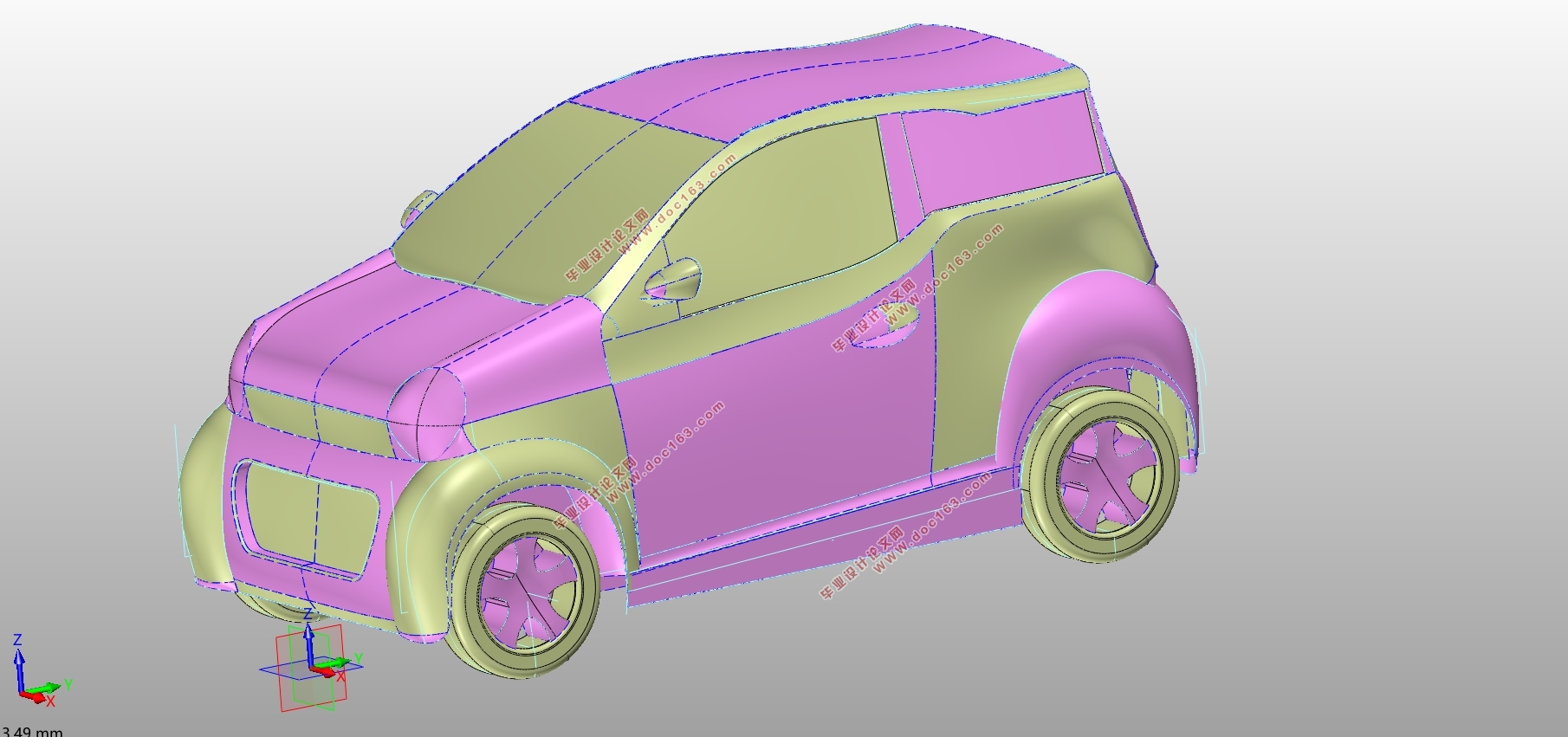

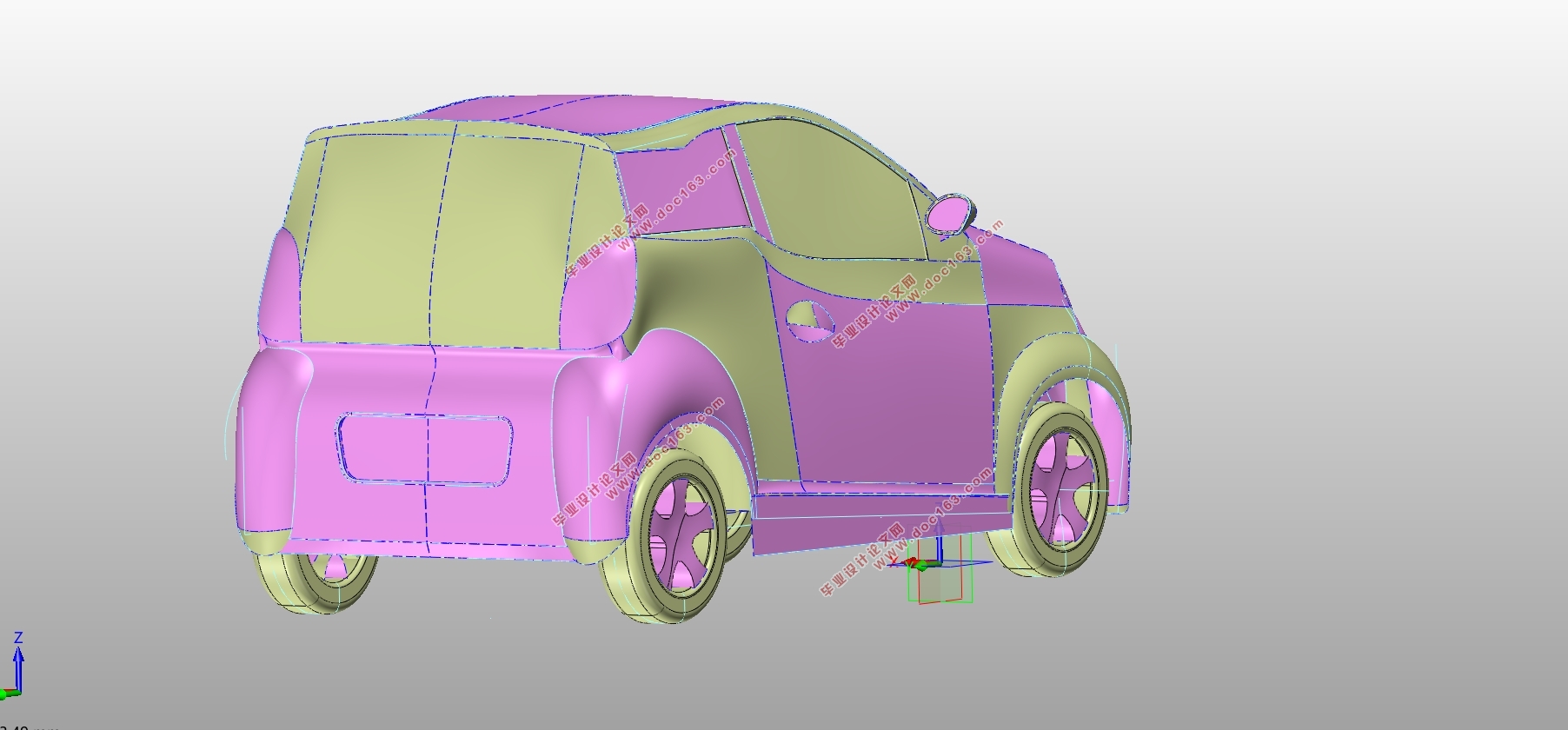

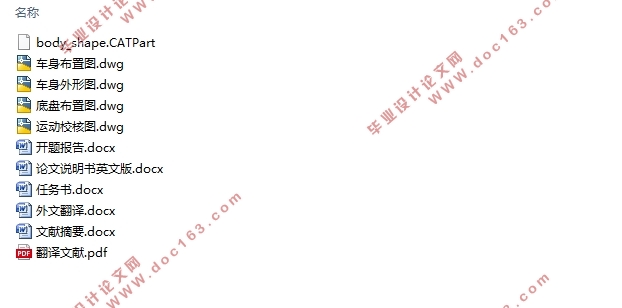

微型纯电动车总体设计(含CAD图,CATIA三维图)(英文版)(任务书,开题报告,外文翻译,文献摘要,论文说明书英文版8500字,CAD图4张,CATIA三维图1张)
Overall Design of a Miniature Pure Electric Vehicle
Abstract
Nowadays pure electric vehicle is more and more popular for the problem of environment pollution and worldwide energy shortage. With the development of urbanization, urban traffic congestion has affected many cities in China. Development of miniature pure electric vehicle can not only alleviate environmental problems, especially air pollution, but also make positive effort on improving urban traffic condition.
  Based on Dongfeng Fengshen E30L, this paper has done the overall design of a miniature pure electric vehicle. It includes the selection of main assembly components, design of the drive system, matching the power storage system and vehicle overall layout. Firstly it has made the selection of main assembly components and main parameters of the vehicle. Secondly it has designed the drive system including traction motor design and selection, transmission system design and check of dynamic requirements. It has put forward a new method to improve the dynamic performance. By planetary gear mechanism, the designed vehicle can shift gears to overcome gradient resistance. Besides, planetary gear mechanism also makes positive effort on acceleration condition and energy control. Thirdly, this paper has done the design of energy storage system and checks the drive range of designed vehicle. Based on ADVISOR, its drive range performance was simulated and analysed. It has check the drive range in three road conditions of CYC_ECE ,CYC_CONSTANT45 and CYC_EUDC_LOW. The results showed that efficiency of the traction motor plays a significant role in drive range. Finally, it has completed vehicle body design and body layout. It also concluded chassis layout and motion correction. Most information in this part is shown in engineering drawings. [来源：http://think58.com]
  The paper has finished the overall design for required performance and it has put up a new idea on power train for miniature pure electric vehicle. It may provide reference on miniature pure electric vehicle overall design
Key words:pure electric vehicle; overall design; power train; driving range


[来源：http://www.think58.com]
Content
Chapter 1 Introduction    1
1.1 Research Purpose and Significance    1
1.2Domestic Development Status    1
1.3Worldwide Development Status    2
1.4 The Main Content of This Study    2
Chapter 2 Determining the Overall Parameters and Selecting Main Assembly Components    4
2.1 Determining the Dimensions of Miniature Pure Electric Vehicle    4
2.2 Determining the Mass Parameters of Miniature Pure Electric Vehicle    5
2.3 Determining Main Performance Parameters of Miniature Pure Electric Vehicle    5
2.4 Selecting Traction Motor of the Miniature Pure Electric Vehicle    6
2.5 Selecting Transmission System of the Miniature Pure Electric Vehicle    6
2. 6 Selecting Power Storage System of Miniature Pure Electric Vehicle    7
2. 7 Selecting Suspension System of Miniature Pure Electric Vehicle    7

[资料来源：http://think58.com]

2. 8 Selecting Steering System of Miniature Pure Electric Vehicle    8
2. 9 Selecting Braking System of Miniature Pure Electric Vehicle    8
2. 10 Selecting Vehicle Body and Tire Type of Miniature Pure Electric Vehicle    9
Chapter 3     Design of Drive System of the Miniature Pure Electric Vehicle    10
3. 1 Selection of Traction Motor    10
3.1.1 Determining Power of Traction Motor    10
3.1.2 Determining Traction Motor    12
3. 2 Determining Reduction Ratio of Final Drive    12
3.3 Check the Maximum Vehicle Speed    13
3.4 Check Peak Power for the Maximum Gradient    14
3.4.1 Improvement of Transmission    14
3.4.2 Determining Method of Improvement    14
3.4.3 Determining Form of the Mechanism    15
3.5 Check the Maximum Gradient with Improved Transmission    16

[资料来源：http://www.THINK58.com]

3.6 Check the Acceleration Time of the Miniature Pure Electric Vehicle    18
3.6.1 Determining the Time of Acceleration Time    18
3.6.2 Analysis of Acceleration in Different Transmission Condition    20
Chapter 4 Design of Power Storage System of the Miniature Pure Electric Vehicle    21
4.1 Determining the Performance of Power Storage System    21
4.2 Check Driving Range of Miniature Pure Electric Vehicle    22
4.3 Simulate Driving Range of Miniature Pure Electric Vehicle by ADVISOR    23
4.3.1 Build Models of Vehicle for Simulate    23
4.3.2 Determining Parameter of Simulation    23
4.3.3 Analysis Result of Simulation    24
Chapter 5 Design of Vehicle Body of Miniature Pure Electric Vehicle    26
5.1 Determining Vehicle Body of Miniature Pure Electric Vehicle    26

[资料来源：THINK58.com]

5.2 Build Vehicle Body Model in Software    26

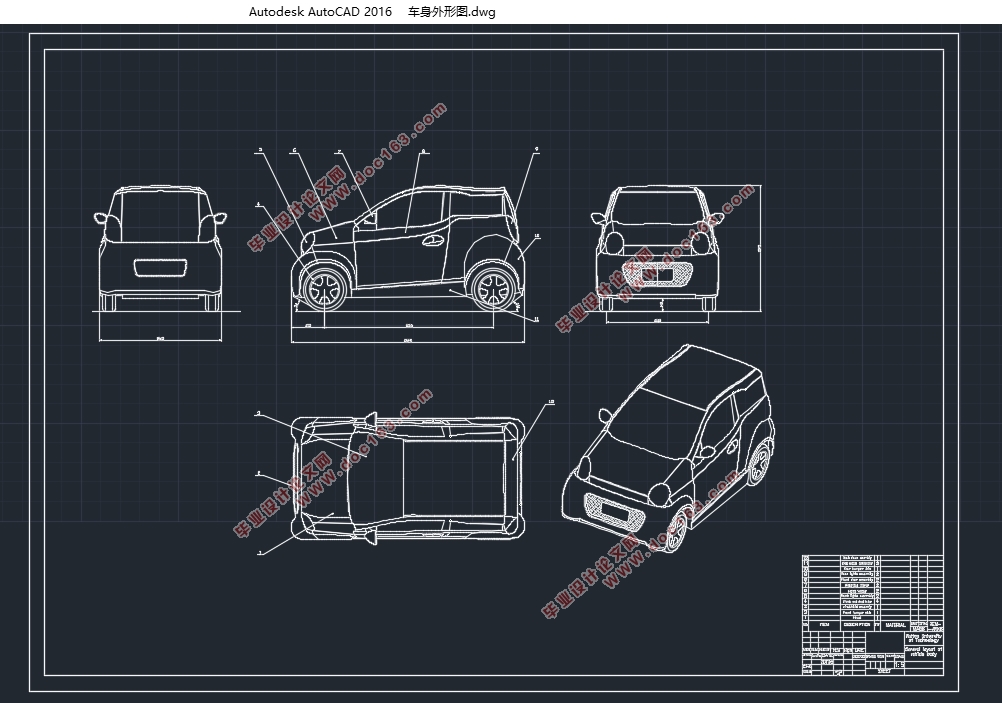

5.3 Engineering Drawing of Vehicle Body    27

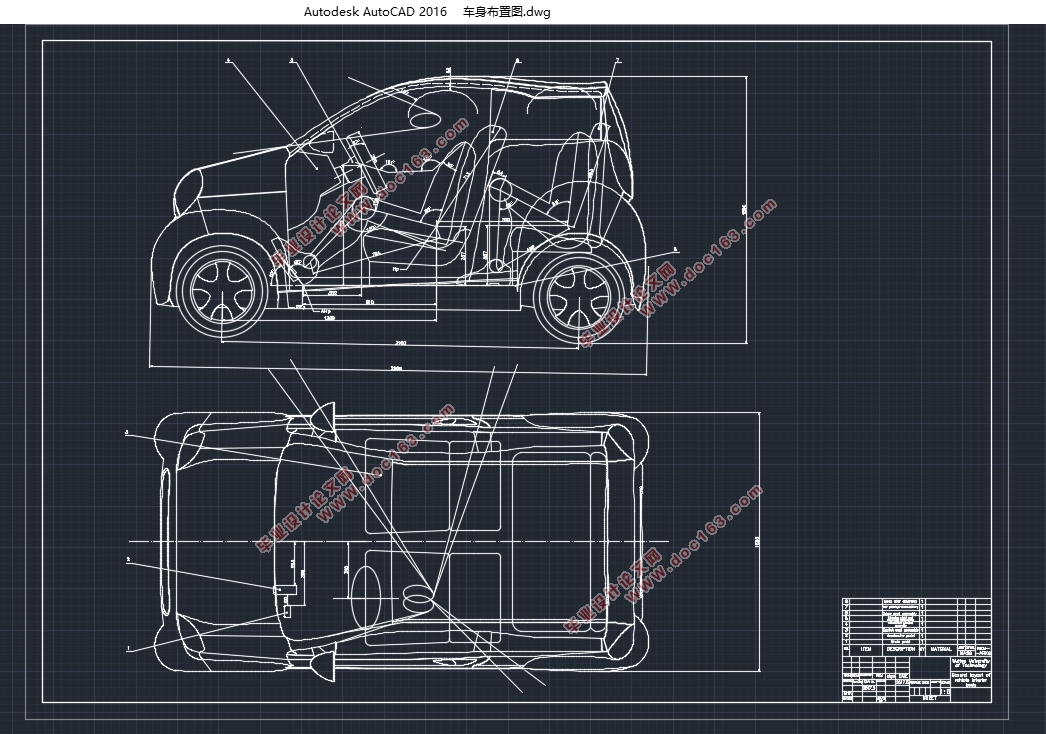

Chapter 6 Design of Vehicle Body Layout    28
Chapter 7 Design of Vehicle Chassis Layout    29
Chapter 8 Motion Correction of the Miniature Pure Electric Vehicle    30
conclusion    31
References    32
Appendix A    34
Appendix B    35
Acknowledgment    37 [来源：http://www.think58.com]
