湖北省崇阳县天城镇排水工程设计(含CAD图)

以下是资料介绍,如需要完整的请充值下载.
1.无需注册登录,支付后按照提示操作即可获取该资料.
2.资料以网页介绍的为准,下载后不会有水印.资料仅供学习参考之用.

资料介绍:

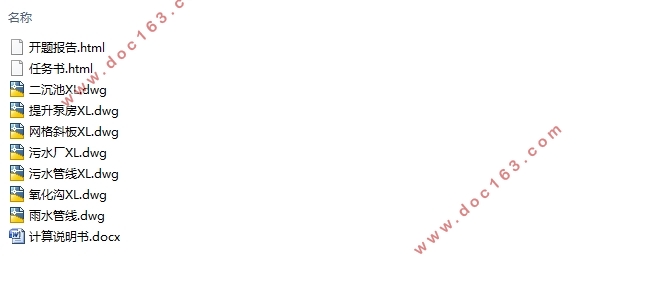

湖北省崇阳县天城镇排水工程设计(含CAD图)(任务书,开题报告,计算说明书32000字,CAD图7张)
摘要
  排水工程设计是城市规划中的重要一环。本次设计的主要任务是初步完成湖北省崇阳县天城镇的排水工程设计。排水工程涉及内容包括:雨、污水管网工程与污水处理厂工程设计。
崇阳县天城镇位于崇阳盆地中北部,跨北纬29°29′-29°39′,东经113°45′-114°06′。城区属丘陵地带,地面高程(黄海高程)为50m至70m之间,隽水河自西向东穿越城区。崇阳县属亚热带季风气候,日照充足,温和多雨,无霜期长,四季分明。常年雨热同季。冬季东北风,夏季东南风。目前城区尚无雨污分流管道系统,因此需建设完整的排水管道收集系统,做到雨、污分流,将污水收集并输送到污水处理厂。
    根据该区的实际情况,排水管网采用完全分流制系统。污水采用一根主干管沿河岸线由西至东,收集南北流向的污水,排入位于隽水河下游、偏离主城区的污水处理厂进行处理,处理后水即排入隽水河。雨水依据就近排放的原则,将整个市区分为八个部分,设置独立的雨水排出系统,顺城区地势由北向南将雨水排入隽水河。
根据流域特点和主导风向,污水处理厂定址于城镇郊区、天城镇的东南部,近期规模为4.0万m3/d,远期规模为6.0万m3/d。根据处理水特点和出水水质要求,采用一级A处理标准,核心生物处理工艺选择氧化沟工艺,主要工艺流程为中格栅→提升泵房→细格栅→沉砂池→氧化沟→幅流式二沉池→网格絮凝池→斜板沉淀池→普通快滤池→紫外线消毒渠→巴氏计量槽→隽水河。 [版权所有:http://think58.com]
根据任务指导书要求,我在本设计中完成了崇阳县天城镇排水管道系统、污水处理厂构筑物的设计计算,绘制图纸7张(A1,包括一张墨线图和手画图),完成说明书、计算书各一份。
关键词:天城镇排水设计;氧化沟工艺;脱氮除磷;化学除磷;污泥处理

Abstract
Key Words:Rainwater shunt; oxidation ditch process; nitrogen and phosphorus removal; chemical phosphorus removal; sludge treatment
Drainage engineering design is an important part of urban planning. The main task of this design is to initially complete the drainage engineering design of Tiancheng Town, Chongyang County, Hubei Province. Drainage works include: rain, sewage pipe network engineering and sewage treatment plant engineering design.
The town of Chongyang County is located in the north-central part of the Chongyang Basin, spanning 29°29′-29°39′ north latitude and 113°45′-114°06′ east longitude. The urban area is a hilly area. The ground elevation (Yellow Sea elevation) is between 50m and 70m. The Qinshui River runs through the city from west to east. hongyang County has a subtropical monsoon climate with abundant sunshine, mild and rainy weather, long frost-free period and four distinct seasons. Year-round rain and heat in the same season. Northeast winds in winter, southeast winds in summer. At present, there is no rain and sewage diversion pipe system in urban areas. Therefore, a complete drainage pipe collection system needs to be constructed so that rain and sewage can be diverted and sewage can be collected and transported to a sewage treatment plant.

[来源:http://think58.com]

According to the actual situation in the area, the drainage pipe network adopts a complete diversion system. Sewage uses a trunk pipe along the river's coastline from west to east to collect sewage flowing from north to south and into the sewage treatment plant located downstream of the Weishui River and deviating from the main urban area. The treated water is discharged into the Qinshui River. According to the principle of the nearest discharge, the rainwater will be divided into eight parts of the entire urban area, and an independent rainwater discharge system will be set up. From the north to the south, the rainwater will be discharged into the Qinshui River.
According to the characteristics of the basin and its prevailing wind direction, the sewage treatment plant is located in the suburbs of the town and southeast of Tiancheng Town. The recent scale is 40,000 m3/d, and the long-term scale is 60,000 m3/d. According to the characteristics of treated water and effluent water quality, the first-level A treatment standard is adopted, and the core biological treatment process selects the oxidation ditch process. The main process flow is medium grid → lift pump room → fine grid → grit chamber → oxidation ditch → amplitude flow Type II sedimentation tank → grid flocculation tank → inclined plate sedimentation tank → ordinary fast filter tank → ultraviolet disinfection canal → PaaS metering tank → Qinshui River. [来源:http://think58.com]
According to the requirements of the mission instructions, in this design, I completed the design and calculation of the drainage pipeline system and the sewage treatment plant of Chongyang County. Seven drawings (A1, including an ink line drawing and a hand-painted drawing) were drawn to complete the specification. One copy of the calculation book.
