基于STM32的农场农作物生长环境检测系统设计

基于STM32的农场农作物生长环境检测系统设计(论文11700字)
摘要：现代化农场蕴含了诸多科技元素，为了适应现代化农场在农作物生长环境检测方面的技术需求，本文设计了一种基于STM32的农场农作物生长环境检测系统。该系统由STM32单片机、温湿度传感器、光照强度传感器、酸碱度传感器、液晶显示屏、蜂鸣器组成。STM32单片机用来处理传感器获取的数据，温湿度传感器用来采集农场内温湿度信息，光照强度传感器用来采集农场内光照强度信息，酸碱度传感器用来采集土壤酸碱度信息，液晶显示屏用来显示温湿度、光照强度、酸碱度数据，蜂鸣器用来设计报警系统，以此构成农场农作物生长环境检测系统，实现对农作物生长相关参数的检测。
关键词：STM32单片机；温湿度检测；光照强度检测；酸碱度检测

Farm crop growth environment detection system based on STM 32
Abstract:Modern farm contains many scientific and technological elements,in order to meet thetechnical requirements of modern farm in terms of crop growth environment detection, this paper designs a farm crop growth environment detection system based on STM 32. This system consists of STM 32 single chip microcomputer, temperature and humidity sensor, light intensity sensor, ph value sensor, liquid crystal display and buzzer. Stm 32 single chip microcomputer is used to process the data obtained by the sensor, the temperature and humidity sensor is used to collect the temperature and humidity information in the farm, the light intensity sensor is used to collect the light intensity information in the farm, the ph value sensor is used to collect the soil ph value information, the liquid crystal display screen is used to display the temperature and humidity, light intensity and ph value data, and the buzzer is used to design the alarm system, thus constituting the farm crop growth environment detection system and realizing the detection of relevant parameters of crop growth. [版权所有：http://think58.com]
Key words:STM32 single chip microcontroller;temperature and humidity detection,;light intensity detection; PH value detection


[资料来源：www.THINK58.com]

目录
1引言    1
2系统总体方案    3
2.1 系统设计目标    3
2.2系统设计原则    3
2.2.1系统可靠性    3
2.2.2性价比    3
2.3方案论证与选择    3
2.3.1 单片机的论证与选择    4
2.3.2温湿度传感器的论证与选择    4
2.3.3光照强度传感器的选择    4
2.3.4酸碱度传感器的选择    5
2.4串口协议    5 [资料来源：http://THINK58.com]
2.4.1单总线协议    5
2.4.2I2C总线协议    5

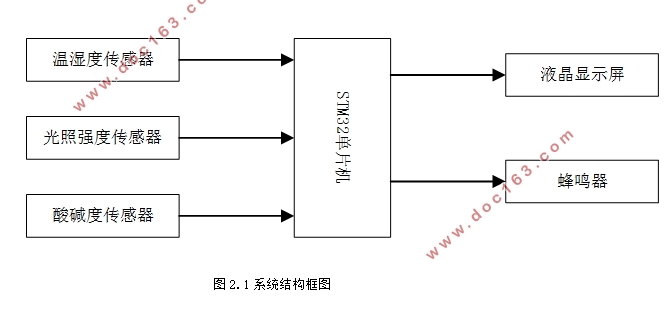

2.5系统总体设计框图    6
2.6本章小结    6
3系统硬件设计    7

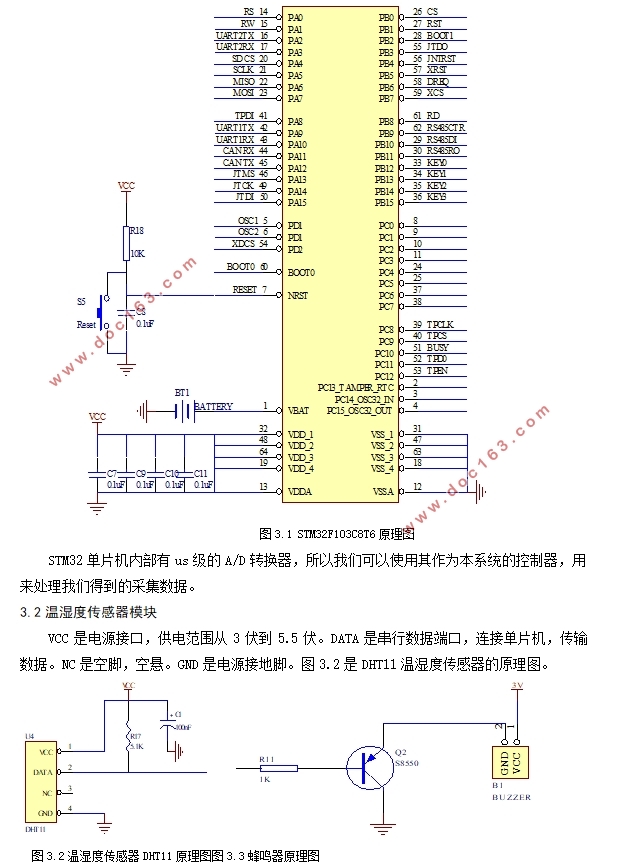

3.1单片机控制模块    7
3.2温湿度传感器模块    7
3.3光照强度传感器模块    8
3.4酸碱度传感器模块    8
3.5显示模块    8
3.6报警模块    9
3.7本章小结    9
4系统软件设计    10
4.1软件设计总框架    10
4.2单片机软件设计    10
4.3传感器程序设计    10
4.3.1温湿度传感器DHT11程序设计    10
4.3.2光照强度传感器BH1750程序设计    11
4.3.3酸碱度传感器程序设计    11
4.3.4液晶显示屏TFT-LCD程序设计    11
4.3.5蜂鸣器程序设计    11
4.4本章小结    11
5系统实验结果与分析    13 [版权所有：http://think58.com]
5.1硬件系统调试    13
5.2问题解决办法    15
6结论    17
参考文献    18
附录    19
致谢    20
